Directly external Dante box, to achieve Dante signal input and output;
Based on Linux operating system develop;
5-core CPU processor, 1.8G main frequency, fast boot, faster running speed;
Shutdown parameters are automatically saved;
Satey, easy to operation.
Characteries:
l NM20:
Local input / output:
20-Ch signal input: 16-Ch MIC/Line input, 2 groups stereo input,
1 group digital input: sound card, MP3, AES digital input;
12-Ch signal output: Main output L, R, 8-Ch AUX1-8 auxiliary output, 1-Ch headphone monitor output,AES output
Signal remote expansion: It could be connected to two 16 in 8 out rackmount digital mixer, to achieve input and
output IO expansion, the maximum support for 52-channel signal input, 28-channel signal output；
l NM24:
Local input/output:
34-Ch signal input (30 Analog + 4 digital): 24-Ch MIC/Line input, 2 groups of stereo input, 1-Ch headphone input ,
2 groups of digital inputs: sound card, MP3, AES digital input)
20-Ch signal output: (main output L,R, 14-Ch AUX1-14 auxiliary output, 1 stereo headphone monitor output, AES
output). Maximum support for 66 signal inputs and 36 signal outputs.
l NM32:
Local input/output:
42-Ch signal input (38 Analog + 4 digital): 32-Ch MIC/Line input, 2 groups of stereo input, 1-Ch headphone input ,
2 groups of digital inputs: sound card, MP3, AES digital input)
20-Ch signal output: (main output L,R, 14-Ch AUX1-14 auxiliary output, 1 stereo headphone monitor output, AES
output). Maximum support for 74 signal inputs and 36 signal outputs.
Support Dante:

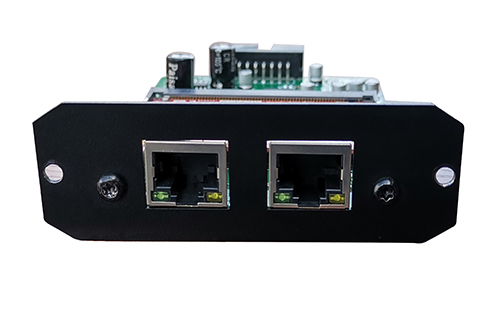

Optional 32×32 Dante version of the card, to achieve Dante signal input and output, support multi-track recording
Specifications:
l MIC input gain adjustment (smooth digital gain, saving to scene);
l MIC input channel (Linked) odd-even stereo coupling;
l +48V Phantom power (MIC channel can be turned on and off independently, saving to the scene)
l MIC input channel independent PAD attenuation switch
l Input processing: built-in limiter, Noise gate, High and low pass filter, 5-band PEQ, Delay;
l Channels parameters quick copy function;
l Channels are equipped with multi-function menu, mute and monitor;
l Channels are equipped with 100MM electric faders;
l Independent faders to control input/output and effe
